उत्पाद विवरण:
|
| रंग तापमान (सीसीटी): | डाई-कास्ट एल्यूमीनियम | इनपुट वोल्टेज (वी): | DC12V/24V |
|---|---|---|---|
| लैंप चमकदार दक्षता (एलएम/डब्ल्यू): | 85 | वारंटी(वर्ष): | 2 साल |
| रंग प्रतिपादन सूचकांक (रा): | 85 | प्रयोग: | इनडोर आउटडोर कदम, सीढ़ी, दीवार, रास्ता |
| प्रमुखता देना: | 3W LED recessed wall light,outdoor aluminum recessed light,IP65 pathway LED light |
||
| Item No. | Light Source | Lens Beam Angle | Power Consumption | Input Voltage | IK Rating |
|---|---|---|---|---|---|
| 1SS0101 | 1×1W | 60° | 1W | DC12V/DC24V | 10 |
| 1SS0101-H | 1×1W | 60° | 1.3W | AC100-240V | 10 |
| 1SS0102 | 1×3W | 60° | 3W | DC12V/DC24V | 10 |
| 1SS0102H | 1×3W | 60° | 3.3W | AC100-240V | 10 |

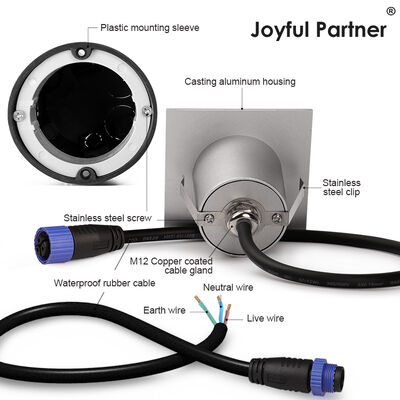

| Housing | ADC12# Die-casting outdoor powder coated aluminum |
| Lens | Optical lens, efficiency ≥85% |

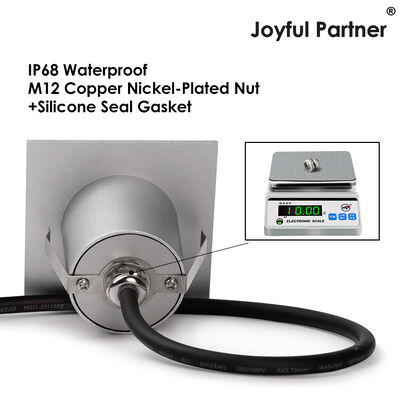

| Cable Gland | M12 nickel coated copper |
| Gasket | Tooling shaped seal |
| LED | Epistar or CREE power LED, Ra>80 |
| PCB | Excellent heat conductivity aluminum, coefficient ≥2.0w/mk |
| Driver | Constant current output, single color LED=1-circuit output |
| Operating Temperature | -20℃ to 40℃ |
| Power Cable | H05RN-F 2×0.75mm² L=0.3m (low voltage) H05RN-F 3×0.75mm² L=0.3m (high voltage) |
Low Maintenance: LED technology provides extended lifespan with minimal maintenance requirements and reduced bulb replacement frequency.
Landscape Integration: Discreet and unobtrusive design blends seamlessly with outdoor environments without overpowering natural beauty.
Expandability: Designed for easy expansion and integration with other lighting systems for future customization and scalability.
Our Locals Square Wall Lights were installed throughout Sharjah to enhance outdoor pathways, entrances, and communal areas. Featuring durable die-cast aluminum housing and IP65 waterproof rating, these recessed wall lights deliver reliable, weather-resistant performance while maintaining modern aesthetics.
The warm white 3000K illumination creates welcoming atmospheres and improves safety, perfectly balancing elegant design with functional performance. This project demonstrates how our wall lights combine efficiency, reliability, and sophisticated design for premium outdoor lighting solutions.
Joyful Lamp is an ISO 9001 certified factory with Made-in-China, Alibaba, and TUV gold medal verification as a custom manufacturer.
Complete photoelectric detection equipment including product performance testing, integrating sphere testing, salt spray testing, and comprehensive photoelectric parameter analysis.
