उत्पाद विवरण:
|
| आईपी रेटेड: | IP65 वाटरप्रूफ | प्रकाश स्रोत: | 5*2W एलईडी |
|---|---|---|---|

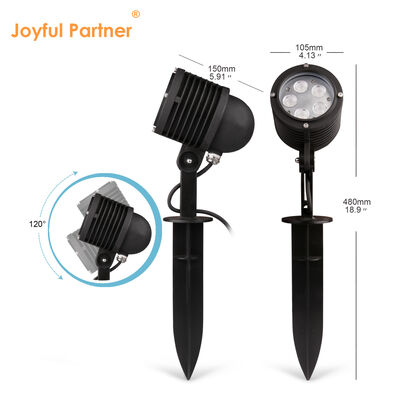

| प्रकाश आकार: | व्यास 105mm*L150mm | हल्के रंग: | आरजीबी |
| सामने का कवर: | एल्यूमीनियम और टेम्पर्ड ग्लास | पत्तन: | गुआंगज़ौ/शेन्ज़ेन |
| वोल्टेज: | DC24V | बीम कोण: | 8°/15° /25°/30° /45°/60° |
| प्रमुखता देना: | LED garden spot light 10W RGB,30 degree beam angle garden light,IP65 waterproof LED light with spike |
||
| Item No. | Light Source | Lens Beam Angle | Consumption | Input Voltage | IK Rate |
|---|---|---|---|---|---|
| 83551 83551B | 5×1W | 8°/15°/20°/30°/45°/60° | 5 | DC24V | 5 |
| 83551H 83551BH | 5×1W | 8°/15°/20°/30°/45°/60° | 6.1 | AC100-240V | 5 |
| 83552 83552B | 5×3W | 8°/15°/20°/30°/45°/60° | 15 | DC24V | 5 |
| 83552H 83552BH | 5×3W | 8°/15°/20°/30°/45°/60° | 15.5 | AC100-240V | 5 |
| 83556 83556B | 5×3W RGB3in1 | 30°/45°/60° | 15.1 | DC24V | 5 |

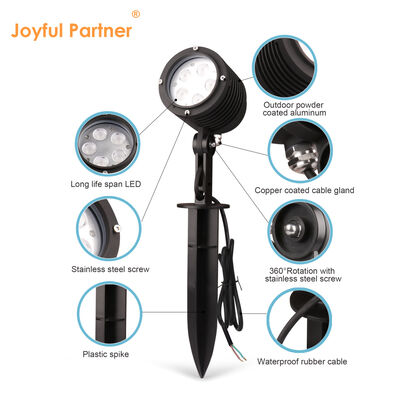

| Housing | 12# Die-casting outdoor powder painting aluminum. T=60-80μm Adhesion of ISO Glass 1/ASTM Glass 4B |
| Glass | Tempered glass. T=4mm |
| Lens | Optical lens, efficiency ≥85% |
| Cable gland | IP68, PG9 nickel coated copper |
| Gasket | Molding shaped silicone double seal |
| LED | Epistar or CREE, Ra>80 |
| PCB | Excellent heat conductivity aluminum, coefficient of heat conductivity ≥2.0w/mk |
| Driver | Constant current output single color LED=1-circuit output RGB 3in1 LED=3-circuit output |
| Operating temperature | -20℃ to 40℃ |
| Spike | PVC |
| Mounting base | Powder coated die-casting aluminum |

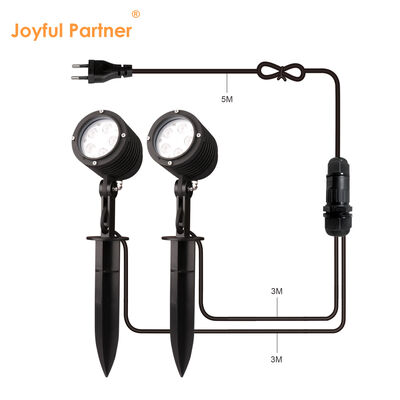

| Power cable | H05RN-F2×0.75mm² L=1m (low voltage) H05RN-F3×0.75mm² L=1m (high voltage) H05RN-F4×0.75mm² L=1m (for RGB) |
| Optional accessory | Honeycomb |
| Antiglare hood | Available |
